| CP600-381V-X2 |
| 发布时间：2022-06-29 11:31:56 |
| 产品型号: | CP600-381V-X2-XXP | |

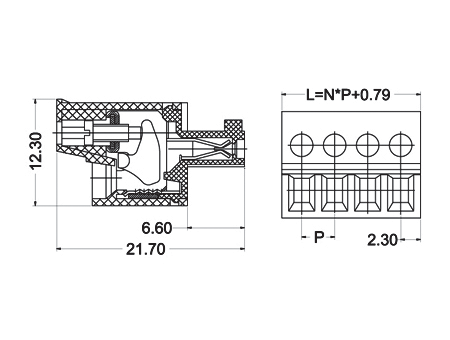

| Pitch Distance/length | 间距/长度 mm | P=3.81 L=P*Poles(位数) |
| Technical Data | 技术参数 | |
| Rated Voltage | 额定电压 V | 300 |
| Rated Current | 额定电流 A | 8 |
| Wire Range | 压线范围 AWG | 16-30 |
| Rated Surge Voltage | 冲击耐电压 KV | 4 |
| Rated Connecting Capacity | 接线截面积 mm² | 1.5 |
| Material | 材料 | |
| Insukation Mate | 绝缘材料 | PA |
| Inflammability Class | 阻燃等级 | UL94,V-0 |
| Terminal Material | 引脚材料 | Brass 黄铜 |
| Terminal Plating | 引脚镀种 | Tin Plated 镀锡 |
| Other Data | 其他信息 | |
| PCB Hole Diameter | PCB板孔径 mm | |
| Stripping Length | 剥线长度 mm | 9 |
| Screw / Torque | 螺丝/扭力矩 /lbf.in | M2 /2 |
