| CB300-950VC-X2 |
| 发布时间：2022-06-30 11:50:06 |
| 产品型号: | CB300-950VC-X2-XXP | |

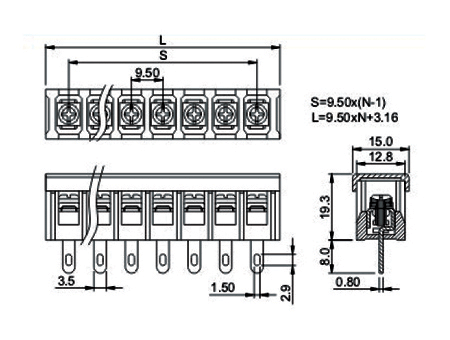

| Pitch Distance/length | 间距/长度 | P=9.50mm |
| Technical Data | 技术参数 | |
| Rated Voltage | 额定电压 V | 300 |
| Rated Current | 额定电流 A | 25 |
| Wire Range | 压线范围 AWG | 16-30 |
| Rated Surge Voltage | 冲击耐电压 KV | 2 |
| Rated Connecting Capacity | 接线截面积 mm² | |
| Material | 材料 | |
| Insukation Mate | 绝缘材料 | PA |
| Inflammability Class | 阻燃等级 | UL94,V-0 |
| Terminal Material | 引脚材料 | Brass 黄铜 |
| Terminal Plating | 引脚镀种 | Tin Plated 镀锡 |
| Other Data | 其他信息 | |
| PCB Hole Diameter | PCB板孔径 mm | |
| Stripping Length | 剥线长度 mm | |
| Screw / Torque | 螺丝/扭力矩 /lbf.in | M4.0 /10.6 |
